API Keys & Crypto

In my naive days, I associated the word crypto to mean anything cryptocurrency and/or blockchain related.

I want to assure you that I am now the wiser (and that I cringe at my former self).

A recent work project got be involved in authenticated and authorising API endpoints. Thanks to this, I have become more acquainted with proper cryptography, as well as sparking a bit of fascination on the topic. I also learned about the crypto module, which is a built-in NodeJS

I am excited to share with you what I have learned, which pales in comparison to what is out there…

Project code can be found here.

The Problem Space

We know the internet is insecure by nature, yet it’s the medium we communicate our most important documents and data.

Cryptography has given us the ability to send data “over-the-wire” by secure means.

When it comes to APIs, we need to ensure the consumers of these APIs are:

1. Authenticated - we can identify who the consumers are
2. Authorised - we know who they are and that they have the permissions to access a particular resource.

We are able to do this using an API key, which both identifies who the consumer is as well as determine if they have the adequate privileges to perform a set task.

Perhaps, we are better not sharing the method in which we implement this. Maybe, bad actors can figure our a flaw in our system. And that’s the point.

It appears counterintuitive to display our plans, but this is in accordance with Kerckhoff’s Principle.

The Plan

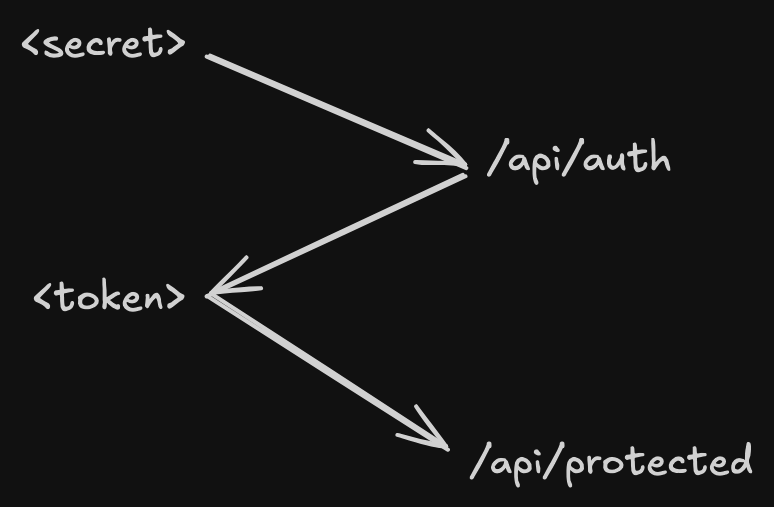

How we will construct this is we have the consumer hold a long-lived API secret in a secure location. The secret is sent via a POST request to a special route /api/auth. If the secret is valid and true, then we send a short-lived token in a form of a JWT (more on this later). This token is added to the header of subsequent API calls for validation. When the token expires, this process repeats.

Why not use the secret? We can, but we want to minimise it’s use across the wire. We use the token, which is short-lived. Validating secrets is computationally expensive. On the other hand, the JWT / token is not as computationally expensive to decode. We can encode user details into the token. However, this only works if we believe the token cannot be tampered with (i.e. bad actors cannot create their own tokens nor can they change the information within).

If the token is leaked, the blast radius is reduced by time, as the token will eventually expire.

The Implementation

Preamble

I will be using Node v24.x.y and my beloved SvelteKit to demonstrate this in action.

Generating the secret

The most important thing with a secret is that is cannot be replicated easily. That means the generation of the key must be random - in the sense, that what ever we retrieve cannot be easily reproduced by a pattern.

NodeJS’s crypto can help us with this.

import crypto from 'node:crypto';

// We have choosen a length of 256 to ensure it's hard to generate due to chance
const LENGTH = 256;

// We use hmac, the other option is aes - hmac is more appropriate for secrets (source - trust my internet research...)
const secret = crypto
	.generateKeySync('hmac', { length: LENGTH })
	.export()
	// We encode to `'base64url'` as it's friendlier to send over the wire `'hex'` is another alternative
	.toString('base64url');

console.log(secret); // 2bdb0a7...

Storing the secret

In order to verify the secret, we will need to store it. It’s probably not a good idea to store this in plaintext, since anyone with the database can steal and use these secrets as if they were the user in question.

Instead, what we will do is store the secret like we do passwords.

This means the user will create a secret, be the only viewer of this secret, and can only view this secret once.

For simplicity, we reach for a library to perform the password derivation for our secret. We don’t simply hash the secret, but we add a salt as well as adding computation to prevent brute force attacks.

We use argon2 as this won a competition for password hashing. It’s also recommended to use above scrypt and bcrypt.

NOTE: we are using argon2; you can also use scrypt since at the time of writing, scrypt can be used in node with no third-party libraries needed (this might also be the case for argon2 in the future).

// ... `secret` generation
// ... `db` code
const hash = await argon2.hash(secret);
const id = crypto.randomUUID(); // We tack on a unique UUID to allows us to link to the hash
const key = Buffer.from(`${id}.${secret}`).toString('base64url'); // We combine the secret with the id as a pair so the user only has one "secret" to deal with
db.create({ id, hash }); // We store the hash on the database

console.log(key); // MDlmMTQyOWQtOTMwNy00ZjE1LWFiMWYtODYwMDczODRhNDlkLnRVX3JjUWplcWo5al83SDMxZjZWWnRSN0pzTWR3T1F0ZlpiUndJWXMzeTA

console.log(hash); // $argon2id$v=19$m=65536,t=3,p=4$IB61PbwS707PTz8venNN5Q$LqkpF9WshMJcnDnd6M1BZI0mJ0+LFtzQQ6gQIURIdVo

As you can see above, the client or user will store the key in a secure location, while we store the hash. You can see how the hash is prepended with settings for argon2 parameters. These parameters are the recommended settings to ensure the hashes are hard to crack, but at the same time, it won’t bring down the entire server! If we were to change the parameters, existing keys can still be used without needing to be reset.

Verifying The Secret

We have an endpoint that is used to verify the secret. We don’t have the secret stored in plaintext so we will need to use the secret provided to determine if what the user is sending is valid.

We create an endpoint for the user to provide their secret.

This is how it works:

1. Validate the input to make sure we can get the id-key pairing
2. We search the database using the extracted id
3. If we find the id, we collect the hash and perform our verification
4. At any point, if there is a failure (e.g. invalid id-key pair, id does not exist, or hash is invalid, we need to error gracefully).

// +server.ts
import { error, json } from '@sveltejs/kit';
import type { RequestHandler } from './$types';
import * as argon2 from 'argon2';
import * as z from 'zod';
import { db } from '$lib/db';

// Create schema to validate if the user is sending the `secret` in the correct format
const Schema = z.strictObject({
	secret: z
		.base64url()
		.transform((data) => Buffer.from(data, 'base64url').toString('ascii'))
		.pipe(z.string())
		.transform((data) => data.split('.'))
		.pipe(z.tuple([z.uuid(), z.base64url()]))
});

export const POST: RequestHandler = async ({ request }) => {
	const fd = await request.formData();
	const result = Schema.safeParse(Object.fromEntries(fd.entries()));
	if (result.success === false) {
		console.info(result.error);
		error(401);
	}
	const [id, secret] = result.data.secret;
	const record = db.find(id);
	if (record === undefined) {
		console.info('Record not found');
		error(401);
	}
	// This is the part that verifies the secret against the hash in a "slow" way making it difficult to brute force
	if (await argon2.verify(record.hash, secret)) {
		/* !!Success!!
		 * We need to send the `token` to the user
		 */
	}
	console.info('Invalid Key');
	error(401);
};

Generating the Token

The secret is long-lived and computationally expensive, so not appropriate for use on every single request. We can compromise and use a short-lived token

We are going to use JWTs (JSON Web Tokens) for this.

// Other imports
import * as jose from 'jose';

// ... Secret has been verified successfully by `argon2`
const payload = { id: id, name: record.name };
const alg = 'HS256';
const token = await new jose.SignJWT(payload)
	.setProtectedHeader({ alg })
	.setIssuedAt()
	// We could set the expire time at a shorter interval, 1 hour is quite long
	.setExpirationTime('60min')
	.sign(sign);
console.log(token); // eyJhbGciOiJIUzI1NiJ9.eyJpZCI6ImM5YjhjODcyLTY1ZWYtNDkwYS04MjkwLWJmMDUwN2QwOGZlMCIsIm5hbWUiOiJBbm5pZSBQYXJrZXIiLCJpYXQiOjE3NjcwNjgyNzgsImV4cCI6MTc2NzA3MTg3OH0.xlzNKMVUJc28S0yJO4XICDY6cZtFfBwku7T5YV2lzrA
return json({ token }, { status: 200 });

When we use tools like jwt.io and we can examine the contents:

{
	"id": "c9b8c872-65ef-490a-8290-bf0507d08fe0",
	"name": "Annie Parker",
	"iat": 1767068278,
	"exp": 1767071878
}

Key feature of JWTs is that they are:

1. Stateless
2. Cannot be tampered with
3. Don’t involve significant computation to verify (unlike creating and verifying our secret)

Stateless means we can store user information. In the example, we have the name Annie Parker, which we can derive from this JWT. We trust this because JWTs are almost impossible to tamper with - you cannot simply change the name into someone else and impersonate them. If this happens, then the JWT is no longer valid.

A downside of JWTs is that they can be a catastrophic if, by accident, they are leaked to bad actors. Due to their stateless nature, holders of the tokens can easily impersonate users and its difficult to revoke access. We have to either wait until the token expires or we can add a protection via a database lookup using an id - checking of the secret is still valid.

Verifying the Token

Here is a code snippet that we use at another server endpoint (+server.ts file in the case of SvelteKit) to show how a token is verified. This can be easily added to the middleware of the project.

In this example, we ask the user to send the token in the request header.

import { error, json } from '@sveltejs/kit';
import type { RequestHandler } from './$types';
import * as z from 'zod';
import * as jose from 'jose';
import { db } from '$lib/db';
import { sign } from '$lib/auth';

const RequestHeaderSchema = z.object({
	'x-auth': z.string()
});

const SchemaPayload = z.object({ id: z.uuid(), name: z.string() });

export const GET: RequestHandler = async ({ request }) => {
	const result = RequestHeaderSchema.safeParse(Object.fromEntries(request.headers.entries()));
	if (result.success === false) {
		console.info(result.error);
		error(401);
	}
	const jwt = result.data['x-auth'];
	try {
		const { payload } = await jose.jwtVerify(jwt, sign);
		const result = SchemaPayload.safeParse(payload);
		if (result.success === false) {
			console.info('Invalid payload');
			error(401);
		}
		const user = result.data;
		const record = db.find(user.id);
		if (record === undefined) {
			console.info('Record not found');
			error(401);
		}
		return json(user, { status: 200 });
	} catch (err) {
		console.info(err);
		error(401);
	}
};

If the token is valid, then we grant access to whatever resource or action to user is requesting. Other than that, if the token is not supplied or it’s not valid, we supply a 401 error, which essentially means I don’t know who you are. Oppose this to a 403, which is I know who you are, but you don’t have the permissions to access this.

In Action

I have turned this into a web-based tool. The code can be found here.

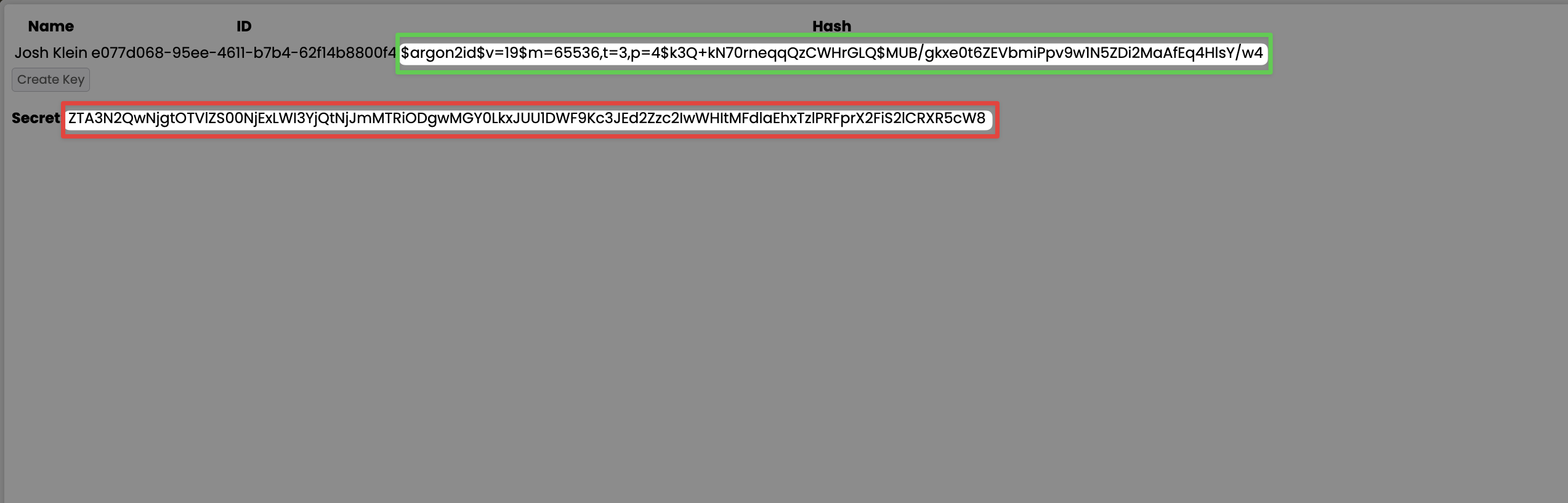

I can use the web page to create a secret as shown below.

I use HTTPie (as an example) to access the endpoint with my secret and in return I receive a token.

NOTE: I am using localhost:5173 to host my server.

# I am running this on localhost:5173

> http POST localhost:5173/api/v0/auth --form secret=ZTA3N2QwNjgtOTVlZS00NjExLWI3YjQtNjJmMTRiODgwMGY0LkxJUU1DWF9Kc3JEd2Zzc2IwWHItMFdlaEhxTzlPRFprX2FiS2lCRXR5cW8 --body

{
    "token": "eyJhbGciOiJIUzI1NiJ9.eyJpZCI6ImUwNzdkMDY4LTk1ZWUtNDYxMS1iN2I0LTYyZjE0Yjg4MDBmNCIsIm5hbWUiOiJKb3NoIEtsZWluIiwiaWF0IjoxNzY3MjQxMzk0LCJleHAiOjE3NjcyNDQ5OTR9.o-uRV070C9mg9kFNdvVuVIT76-2QRh5KZoXev4bRdnc"
}

I use the token to access other routes. This route returns the name and id:

> http GET localhost:5173/api/v0/secret -h x-auth:eyJhbGciOiJIUzI1NiJ9.eyJpZCI6ImUwNzdkMDY4LTk1ZWUtNDYxMS1iN2I0LTYyZjE0Yjg4MDBmNCIsIm5hbWUiOiJKb3NoIEtsZWluIiwiaWF0IjoxNzY3MjQxMzk0LCJleHAiOjE3NjcyNDQ5OTR9.o-uRV070C9mg9kFNdvVuVIT76-2QRh5KZoXev4bRdnc --body

{
    "id": "e077d068-95ee-4611-b7b4-62f14b8800f4",
    "name": "Josh Klein"
}

Extra Resources

At the time of writing I am delving into these materials:

• The Code Book
• Understanding Cryptopgraphy
